What is MCB in Electricity: Types and Functions

24 December 2023

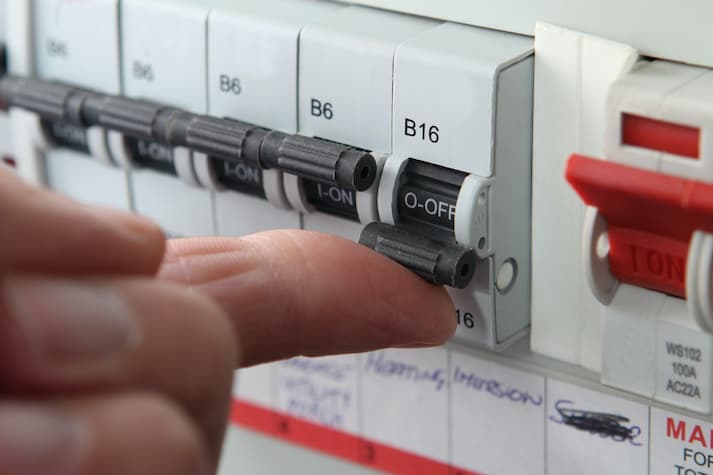

apa itu mcb pada listrik

Some Sobat Honda must be familiar with MCB, what is MCB? MCB itself is a type of circuit breaker device that is useful for protecting electrical circuits and equipment from various problems. Then, what about the type of MCB? How many types of MCB are there and what are their functions? Read more about MCBs and their types and functions in the article below.

When building a building, Sobat Honda definitely need electricity to light the building and help optimize some of the equipment that operates using electricity. MCB is also an important part of the electricity supply which you should not forget to know about its type and function, so that Sobat Honda can choose more precisely according to your existing needs.

What is MCB in Electricity?

A device known as a miniature circuit breaker, or MCB, works to automatically stop the flow of electricity when an excessive amount of current is present. In essence, an MCB is a switch that has the ability in order to automatically turn off the electricity when there is an issue in the electricity.

MCB is an important part in an electrical system that helps maintain the safety and performance of electrical circuits. It is important to understand the appropriate type of MCB and the nominal current value required according to the needs and specifications of Sobat Honda electrical installation.

MCB's Significance in Electrical Systems

MCB is very important in electrical systems because it can protect electrical equipment from damage due to excessive electric current. With an MCB, electrical equipment can work more safely and avoid damage. Following are several things that Sobat Honda should know about the importance of MCBs in electrical systems.

1. Preventing Fire

MCB has a function to stop fires caused by high electric current. An MCB can automatically turn off the electricity supply, preventing fires caused by over-currents in the electrical system.

One common cause of fire is a short circuit, which is when two electrical cables come into direct contact. The MCB in electricity will immediately break the circuit if a short circuit is detected, thereby avoiding potential fires caused by the excessive electric current and there is also a too high heat.

2. Makes Electrical Repairs Easier

MCB also makes the electrical repairs easier because the MCB can cut off electricity more quickly and easily. With an MCB, electricians can also carry out electrical repairs more safely and easily.

MCBs can also be used in order to help identify problems in a circuit. When the MCB is triggered, the MCB will be an indication that there is a problem in the circuit, such as a short circuit or overcurrent. By checking and troubleshooting the problem, repairs can also be made more quickly.

3. Reduce Downtime

While it is true that MCBs can help reduce downtime in the electricity supply, downtime itself is the time when the electricity flow is interrupted or turned off, and this can be detrimental to businesses or operations that rely on a reliable electricity supply.

MCB works to break the circuit if a problem is detected such as a short circuit, overcurrent, or overload. In such situations, the MCB will immediately shut down the circuit, which prevents further damage to electrical equipment and minimizes downtime.

Types of MCB in Electricity

The following are the types of MCB that Sobat Honda need to know about first.

1. Single MCB

This type has only one circuit breaker pole and is used to protect a single circuit or specific device. Single MCB is usually used in order to protect electrical equipment with small electrical power. Sobat Honda needs to know that the size of a single MCB usually ranges from 1 Ampere to 63 Ampere.

The advantage of a single MCB is its small size so it can be easily installed in an electrical installation box. However, the disadvantage of a single MCB is that it can only protect one electrical equipment.

An example of the use of a single MCB is to protect electrical equipment such as lights, fans and electrical equipment with small electrical power.

2. Double MCB

Double MCBs are typically used in order to protect two-phase circuits or devices with two electrical paths because they have two circuit breaker poles. Typically, dual MCBs come in a range of nominal current sizes, including 10A, 16A, 20A, 32A, and so forth. Friends of Honda, you should select a size based on the electrical load that needs to be protected and that fits Sobat Honda needs.

For example, if Sobat Honda have several heavy equipment in one circuit, perhaps Sobat Honda will need a double circuit with a higher nominal current. In addition to nominal current, MCBs also have various types of trigger characteristics that can be tailored to the specific needs of the circuit.

The advantage of the Double MCB is that it can protect two electrical equipment at once. However, the disadvantage of the Double MCB is that its size is larger than the Single MCB so it requires more space in the electrical installation box.

An example of using a Double MCB is to protect electrical equipment such as air conditioners, water pumps and electrical equipment with greater electrical power.

3. Three Pole or Three Phase MCB

It is an MCB which has three circuit breaker poles and is used to protect three phase circuits. Each pole can control the flow of electricity on one phase of a three-phase system or three electrical lines.

Three-pole MCB functions to protect circuits and equipment from overcurrent in each phase. When current exceeding the specified limit is detected in one of the phases, the MCB on that phase will break the circuit, preventing damage due to excessive current.

The advantage of a Three Pole MCB is that it can protect three electrical equipment at once. However, the disadvantage of the Three Pole MCB is that its size is very large so it requires more space in the electrical installation box.

Sobat Honda can see the use of this type of MCB in industrial machines such as generators and electrical equipment with very large electrical power.

Function of MCB in Electricity

The functions of the MCB itself are listed below, assuming that Sobat Honda are familiar with a number of crucial details and MCB types.

1. Overcurrent Protection

The function of overcurrent protection (Overcurrent Protection) on an MCB (Miniature Circuit Breaker) is to protect the electrical circuit from currents that exceed the safe capacity of the cables and equipment connected to the circuit. This includes protection against situations such as short circuits and overloads.

2. Short Circuit Protection

MCB short circuit protection aims to protect electrical cables and equipment connected in the circuit. Without this protection, short circuits can cause wiring to melt or catch fire, and electronic equipment can be permanently damaged.

3. Overload Protection

When an electrical circuit is subjected to a current that exceeds its maximum permissible capacity for an extended period of time, overloading occurs. Overload can result from malfunctioning equipment using more power than it should or from an electrical load placed on a circuit that is greater than it can handle.

4. Ease of use

One of the conveniences of use provided by MCB is automatic protection against overcurrent (excessive load) and short circuit (short circuit) in electrical circuits. This means that Sobat Honda don't need to constantly check or replace manual fuses if a problem occurs in the circuit. The MCB will automatically open the circuit when a disturbance occurs and Sobat Honda only need to press the reset button (if there is one) to restore electricity after the problem has been resolved.

So, there are many benefits and conveniences provided by MCB right? One of them is the third type or three phases which Sobat Honda can definitely see when using a generator machine. Using a generator machine that suits Sobat Honda needs and is supported by good quality will make its use even better.
